What is Battery Inverter Connector?
Key Components for Safe & Stable PV & Energy Storage Systems
Published on: //www.duanzitai.com
In modern photovoltaic power generation and battery energy storage systems, the battery inverter acts as the core power conversion unit. It performs voltage step-up, step-down and power distribution tasks, delivering electricity generated by solar panels to the public power grid or storing excess power into battery packs. The normal operation of the entire photovoltaic system highly relies on the stable performance of the inverter. Once the inverter fails or works abnormally, the whole power generation network will break down. Worse still, unstable internal connections may lead to overheating, short circuits and even fire hazards. For this reason, every internal component of an inverter must feature outstanding stability, durability and safety. A qualified battery inverter connector is exactly the critical part that guarantees long-term reliable operation of inverters. Today we will introduce what battery inverter connectors are, their classifications, and focus on the performance, functions and unique advantages of two mainstream products from TELIAN: PCB welding terminals and feed-through (through-wall) terminals, which are widely used inside inverters.
Understanding Battery Inverter Connectors and Their Core Value
A battery inverter connector refers to a series of professional wiring terminals and connecting components specially designed for power inverters used in photovoltaic systems, battery energy storage and power conversion equipment. As the bridge for power and signal transmission inside inverters, these connectors link PCBs, internal circuits, external wiring and equipment enclosures. They undertake high current transmission, circuit isolation and wiring integration work throughout the power conversion process.
As we all know, inverters work in complex operating conditions with frequent current changes, voltage fluctuations and continuous power load. Poor-quality connectors will cause loose contact, excessive contact resistance and severe heat generation. These hidden dangers will not only reduce the working efficiency of the photovoltaic system, but also directly trigger equipment failure and safety accidents. Therefore, selecting high-performance inverter connectors is the first step to ensure the safe and stable operation of photovoltaic and energy storage projects.
As a professional terminal manufacturer, TELIAN has long focused on the R&D and production of dedicated connectors for inverters. Our product portfolio mainly covers two core categories applied in inverters: PCB welding terminals mounted on internal circuit boards, and feed-through through-wall terminals installed on inverter enclosures. Each product is developed and tested targeting the actual working environment of inverters, with strict material selection and performance standards, fully meeting the high requirements of the new energy industry for connection safety and durability.
TELIAN PCB Welding Terminals for Inverters

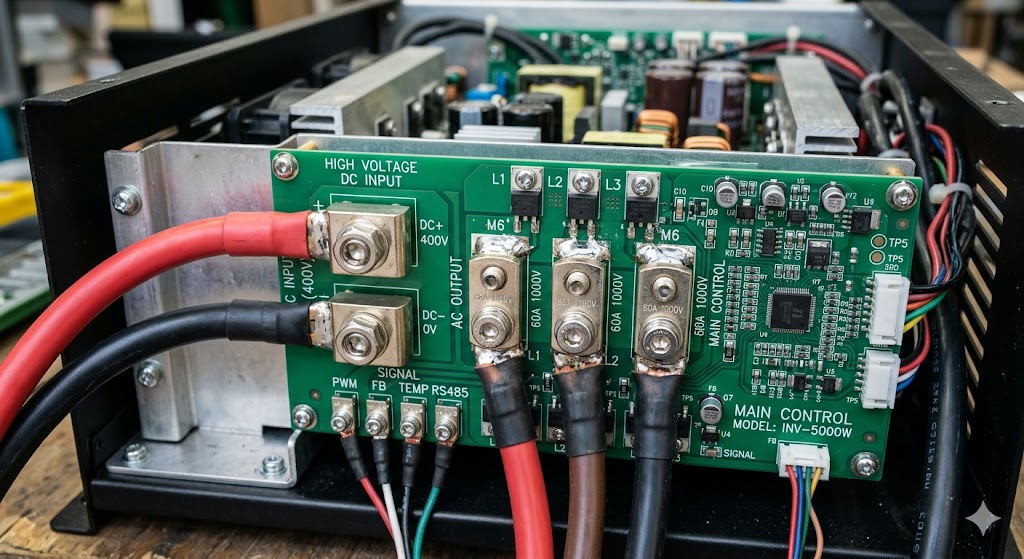

PCB welding terminals are one of the most essential battery inverter connectors, which are directly soldered onto the printed circuit boards inside inverters. They are responsible for connecting the main control circuit, power circuit and signal lines on the PCB with external wires, realizing the transmission of DC input power, AC output power and control signals. In the compact internal space of inverters, these terminals need to maintain stable performance under long-term high-load operation, vibration and temperature changes.
TELIAN adopts rigorous material standards and performance tests for all PCB welding terminals used in inverters. All conductive parts are made of RoHS-compliant eco-friendly copper materials. High-purity copper features excellent electrical conductivity, low contact resistance and good ductility, effectively reducing heat generation during high-current transmission and avoiding power loss caused by poor contact. Meanwhile, all finished PCB welding terminals pass the 48-hour salt spray test, which means the products have strong anti-rust and anti-corrosion capabilities. Whether used in indoor industrial environments or outdoor photovoltaic stations with high humidity and salty air, the terminals will not be corroded easily, and can maintain stable electrical connection performance for years.
Core Functions and Advantages in Inverters
First of all, PCB welding terminals realize orderly wiring on inverter PCBs. They classify power lines and signal lines separately, preventing circuit confusion and electromagnetic interference, and greatly simplifying assembly and later maintenance work. Secondly, the reliable welding structure combined with screw clamping design ensures that wires will not loosen due to equipment vibration during long-term operation, eliminating hidden dangers of poor contact. Thirdly, matched with eco-friendly copper materials, the terminals keep temperature rise within a safe range even under continuous full-load operation of the inverter, which is the key to prevent local overheating and fire risks.
For low-voltage signal circuits and high-power main circuits inside different types of inverters, TELIAN provides diversified specifications of PCB welding terminals to match various power levels. From small household photovoltaic inverters to large commercial energy storage inverters, our products can achieve perfect matching, fully proving our professional strength in customized design and manufacturing.
Core Functions and Advantages in Inverters
First of all, PCB welding terminals realize orderly wiring on inverter PCBs. They classify power lines and signal lines separately, preventing circuit confusion and electromagnetic interference, and greatly simplifying assembly and later maintenance work. Secondly, the reliable welding structure combined with screw clamping design ensures that wires will not loosen due to equipment vibration during long-term operation, eliminating hidden dangers of poor contact. Thirdly, matched with eco-friendly copper materials, the terminals keep temperature rise within a safe range even under continuous full-load operation of the inverter, which is the key to prevent local overheating and fire risks.
For low-voltage signal circuits and high-power main circuits inside different types of inverters, TELIAN provides diversified specifications of PCB welding terminals to match various power levels. From small household photovoltaic inverters to large commercial energy storage inverters, our products can achieve perfect matching, fully proving our professional strength in customized design and manufacturing.
TELIAN strictly controls every index of through-wall terminals for inverters. The insulating shell is made of high-quality engineering plastic that reaches UL94 V-0 flame retardant grade. This material will not burn or spread flames when encountering high temperature or short circuit, and can automatically extinguish fire sources, which is a vital safety barrier for inverters. In terms of electrical performance, our through-wall terminals achieve outstanding pressure resistance: they support AC 2500V power frequency withstand voltage and 6000V impulse withstand voltage. Such excellent insulation performance can effectively resist instantaneous voltage surges and abnormal voltage fluctuations in power systems, avoid breakdown and electric leakage, and fully protect both equipment and operators.

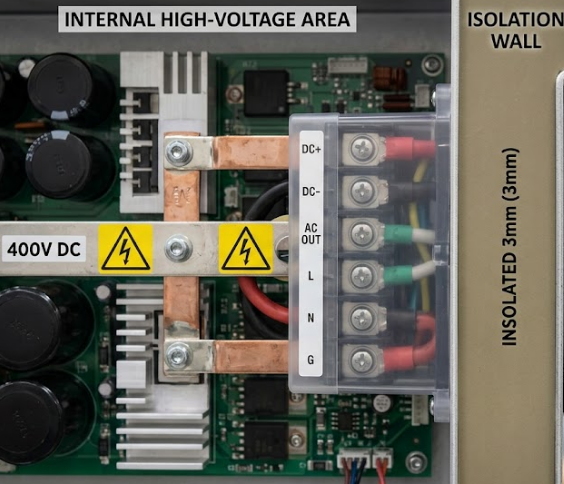

Different from PCB welding terminals installed on circuit boards, feed-through through-wall terminals are mounted on the shell and partition panels of inverters. As another core type of battery inverter connector, their main function is to connect internal circuits and external wires of the inverter through the equipment wall. They isolate the internal working area and external wiring area physically, while completing the transmission of large current and voltage. This type of terminal faces stricter requirements on insulation, pressure resistance and flame retardancy, as it needs to bear high voltage for a long time and resist external environmental impacts.
Core Functions and Advantages in Inverters
In practical application, through-wall terminals separate the internal high-voltage working area from the external wiring part of the inverter, forming a reliable physical isolation. It effectively prevents dust, moisture and foreign matter from entering the inverter interior through wiring holes, protecting precision internal circuits and extending the overall service life of the equipment.
In terms of power transmission, with ultra-high withstand voltage performance, the terminals can operate stably under the standard working voltage of photovoltaic inverters. Even when instantaneous surge voltage occurs during startup, shutdown or load switching, the insulation structure will not be damaged. Combined with UL94 V-0 flame retardant plastic, it forms double safety protection against overheating and fire. In addition, the optimized structural design of TELIAN through-wall terminals ensures firm installation on the inverter shell, with strong vibration resistance and aging resistance, adapting to long-term uninterrupted operation of inverters in various harsh scenarios.
Why Choose TELIAN for Battery Inverter Connectors
As a professional manufacturer dedicated to terminal production, TELIAN has in-depth insight into the operating characteristics and safety requirements of photovoltaic and energy storage inverters. We do not simply produce general wiring terminals, but develop targeted solutions for inverters based on actual application scenarios.
From material selection to finished product testing, every link follows high industry standards. Eco-friendly copper with RoHS certification and 48-hour salt spray resistance guarantee the durability of PCB welding terminals; UL94 V-0 flame retardant material and excellent high withstand voltage performance make through-wall terminals a solid safety line for inverter enclosures. The two major product series cover the internal circuit and external wall wiring of inverters, forming a complete set of connection solutions.
In the rapidly developing photovoltaic and energy storage industry, the stability of inverters determines the efficiency and safety of the entire power generation system. Reliable connectors are the cornerstone of inverter normal operation. TELIAN always adheres to quality-oriented production concepts, and our products have been widely applied in numerous photovoltaic power stations, battery energy storage projects and supporting inverter equipment, winning consistent recognition from customers.
In terms of power transmission, with ultra-high withstand voltage performance, the terminals can operate stably under the standard working voltage of photovoltaic inverters. Even when instantaneous surge voltage occurs during startup, shutdown or load switching, the insulation structure will not be damaged. Combined with UL94 V-0 flame retardant plastic, it forms double safety protection against overheating and fire. In addition, the optimized structural design of TELIAN through-wall terminals ensures firm installation on the inverter shell, with strong vibration resistance and aging resistance, adapting to long-term uninterrupted operation of inverters in various harsh scenarios.
Conclusion
Battery inverter connectors are small but indispensable core components in photovoltaic and energy storage systems. PCB welding terminals and feed-through through-wall terminals undertake different connection tasks inside and outside inverters respectively. High-quality materials and professional performance indicators are the key to avoid system paralysis and fire accidents caused by connection failures.
With professional R&D capabilities, strict quality control and rich practical application experience, TELIAN provides high-reliability terminal products tailored for inverters. Whether you need PCB welding terminals with anti-corrosion and eco-friendly features, or through-wall terminals with excellent flame retardancy and high withstand voltage, we can deliver satisfactory solutions.
To learn more about our battery inverter connectors and full range of terminal products, please visit our official website://www.duanzitai.com
