WTD100-01-L1 Feed Through Terminal Power Block

    Model NO :
    WTD100-01-L1a
    minimum order :
    1 piece
    Robust feed through terminal power blocks for secure panel-mount electrical connections. Supporting high current loads from 50A to 400A+. Features flame-retardant housing and pure copper conductors. Ideal for industrial power supplies, EV charging, and ESS cabinets by TELIAN
    Quantity :
    Contact Now
    Product Specification: WTD100-01-L1a100A High Power Barrier Series
    Robust feed through terminal power blocks for secure panel-mount electrical connections. Supporting high current loads from 50A to 400A+. Features flame-retardant housing and pure copper conductors. Ideal for industrial power supplies, EV charging, ESS

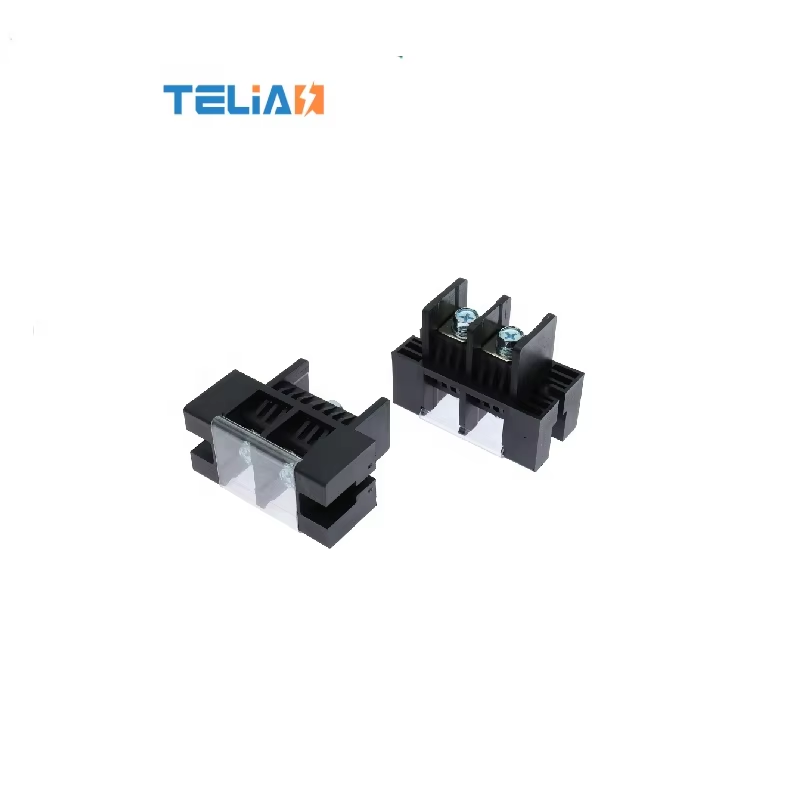

    [ Main Product View ]

    Feed Through Terminal Power Block

    TheWTD100-01-L1a is a professional-grade Barrier Terminal Block engineered for superior power distribution. Featuring a high-strength Alloy SteelandCopper PC housing, this connector is rated for 100A to support demanding industrial electrical appliances.

    Rated Current:100A
    Rated Voltage:600V (AC/DC)
    Pitch Options:9.5mm / 10mm / 11mm / 14mm

    Technical Specifications

    Model NumberWTD100-01-L1aBrandTelian
    MaterialBrass, Alloy Steel, Copper PCPin HeaderBrass Tin/plated
    Contacts2 - 30 Poles (Optional)CertificateCE / ISO Certified
    Operating Temp26°CPackagingPlastic Bag & Carton

    Technical Drawing & Dimensions

    Robust feed through terminal power blocks for secure panel-mount electrical connections. Supporting high current loads from 50A to 400A+. Features flame-retardant housing and pure copper conductors. Ideal for industrial power supplies, EV charging, ESS

    Detailed dimensional drawings provided for R&D and system integration.

    Telian (Guangdong, China) - Dedicated to Professional Barrier Terminal BlockManufacturing

    Heavy-Duty Connection Solution

    Feed Through Terminal Power Block

    TELIAN'sFeed Through Terminal Power Blocks are designed for robust panel-to-panel power transmission. These through-wall connectors ensure that high currents (up to 400A+) pass securely through enclosures while maintaining maximum electrical isolation and safety.

    Technical SpecificationsDetails
    Current Capacity50A / 100A / 200A / 400A+ (Customizable)
    Voltage Rating600V - 1000V AC/DC
    Mounting StyleFeed-Through / Panel-Mount Screw Fixation
    Body MaterialUL94 V-0 Flame Retardant PC/PA66
    Conductor MaterialNickel-Plated Pure Copper
    Superior Insulation
    High-barrier design prevents arcing and short circuits in high-voltage environments.
    Vibration Resistant
    Secure screw-clamping mechanism ensures stability in industrial machinery and EV applications.

    TELIAN specializes in custom pole configurations for power blocks. Whether for photovoltaic invertersorenergy storage batteries, our terminals provide the reliability your project demands.



    WTD100-01-L1a Series: 100A High-Current Barrier Terminal Blocks

    TheWTD100-01-L1a is a heavy-duty Barrier Terminal Block engineered by Telian (锻资台) to bridge the gap between high-power transmission and safe, organized circuitry. Specifically designed for Electric Appliances and industrial power distribution, this Screw Terminal Block provides a robust connection point for systems requiring reliable 100A current handling.

    Key Technical Advantages:

    • Robust 100A Power Handling: Engineered for demanding electrical environments, this series supports a rated current of 100A and a rated voltage of 600V (AC/DC). It is the ideal choice for high-power supply units, frequency converters, and industrial control cabinets.

    • Premium Material Composition: The terminal features a high-conductivity Copper base paired with Alloy Steel screws for superior torque strength and vibration resistance. The housing is made of flame-retardant Black PC material, ensuring excellent insulation and durability under operational stress.

    • Versatile Pitch & Scalability: To meet diverse PCB layout and safety clearance requirements, the series is available in multiple pitches: 9.5mm, 10.0mm, 11mm, and 14mm. With a flexible contact range of 2 to 30 positions, it can be customized to fit your specific device architecture.

    • Superior Contact Protection:TheTin-plated Brass pin headers ensure excellent solderability and long-term protection against oxidation. The classic barrier design prevents accidental short-circuits between terminals, enhancing overall system safety.

    • Certified Manufacturing Excellence: Produced in Guangdong, China, under strict ISO and CE quality management systems. Telian ensures every component meets the rigorous standards required for modern electrical engineering and global export.

    TheWTD100-01-L1a series offers a high-capacity, secure, and professional connection solution, maintaining the stability of your power systems even in the most intensive applications.
