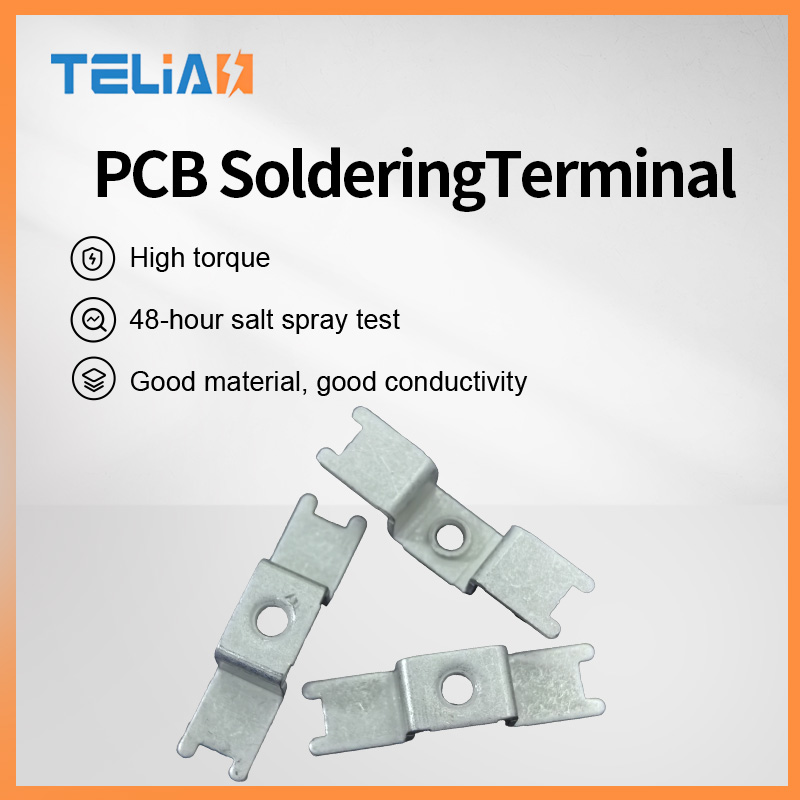

70A PCB Circuit Board Brass M4 Screw Terminal Conductive Bracket

    Model NO :
    TLS44187
    minimum order :
    1 piece
    70A PCB circuit board brass M4 screw terminal conductive bracket features high conductivity, stable screw locking and strong load capacity for energy storage, EV power modules and industrial PCB power distribution.
    Quantity :
    Contact Now
    Product Specification: TLS44187

    High-Current 4P PCB Terminal Series

    70A Rated
    [ High-Resolution Technical View ]

    Screw Terminal (PCB Type)TLS44187

    TheTLS44187 is a heavy-duty PCB Terminal engineered for high-power Electric Appliances. Crafted from premium Brass and Copper with a 4-Pin (4P) configuration, it supports up to 70A current flow, ensuring superior stability for PCB Welding and AC/DC power distribution.

    Rated Current:70A
    Configuration:4P (4 Pins)
    Application:PCB Welding / Power Input
    Request Quote
    7-10 Days Lead Time

    Technical Data Sheet

    Model NumberTLS44187BrandTelian
    DescriptionPCB Wire ConnectorMaterialBrass, Copper
    Pins4PPin HeaderBrass Tin/Plated
    D/CAC/DC CompatibleCertificateCE / ISO Certified
    PackagingPlastic Bag & CartonOriginGuangdong, China

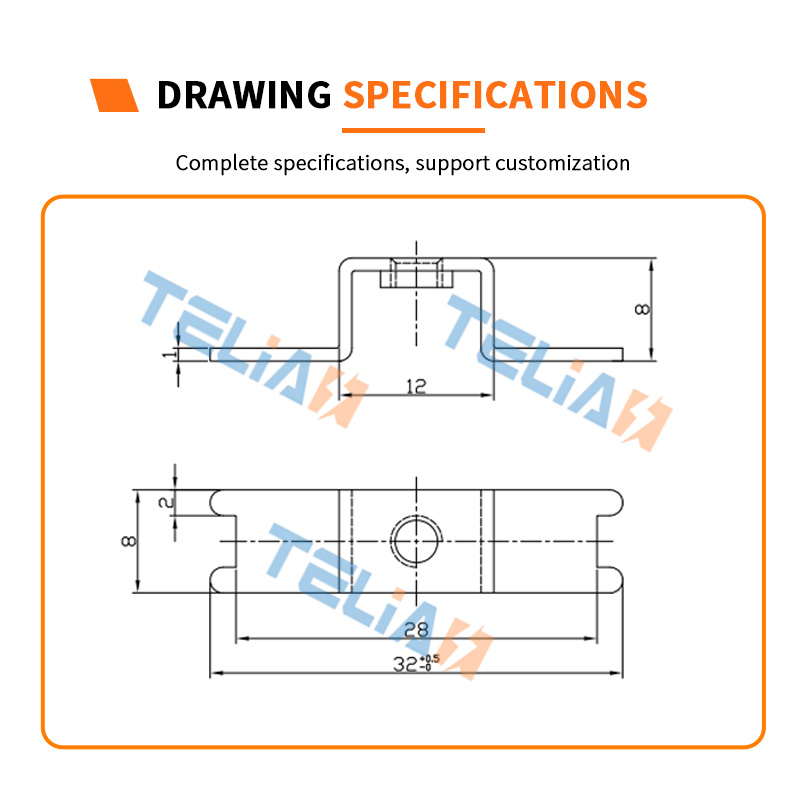

    Engineering Drawing & Support

    Telian provides full R&D Drawing capabilities for seamless system integration.

    TLS44187 Series: 70A High-Current PCB Terminals for Robust Power Integration

    TheTLS44187 is a professional-grade Screw Terminal solution engineered by Telian (锻资台) to deliver high-performance power distribution directly to the PCB. Specifically designed for Electric Appliances and industrial power modules, this 4-Pin PCB Terminal provides a secure, low-resistance interface for demanding AC/DC applications.

    Key Technical Highlights:

    • Robust 70A Current Handling: Built to bridge the gap between heavy-duty power cables and printed circuit boards, the TLS44187 supports a rated current of 70A. It is the ideal choice for power supplies, industrial controllers, and high-load appliance circuitry.

    • Premium Material Engineering: The terminal is constructed from high-conductivity Brass and Copper, ensuring maximum electrical efficiency and minimal heat generation. The Tin-plated Brass pin headers are specifically optimized for PCB Welding, providing superior oxidation resistance and long-term solder joint integrity.

    • Secure 4P Configuration: Featuring a stable 4-Pin (4P) layout, this terminal ensures a balanced mechanical and electrical connection to the board, reducing stress on solder points even under high-vibration conditions.

    • Rapid Development & Delivery: Manufactured in our Guangdong facility, we offer a fast lead time of 7–10 days. Backed by Telian’s strong R&D capabilities, we can provide customized solutions based on your specific technical drawings to ensure seamless integration into your hardware design.

    • Certified Quality Assurance: Fully compliant with CE and ISO standards, the TLS44187 undergoes rigorous quality control to meet the safety and durability requirements of global industrial and automotive electronics markets.

    TheTLS44187 series offers a compact yet powerful connection solution, providing the"Telian"guarantee of reliability for your most critical high-current PCB designs.


    Telian (Guangdong, China) - Specializing in High-Performance PCB Terminals and Connectors
